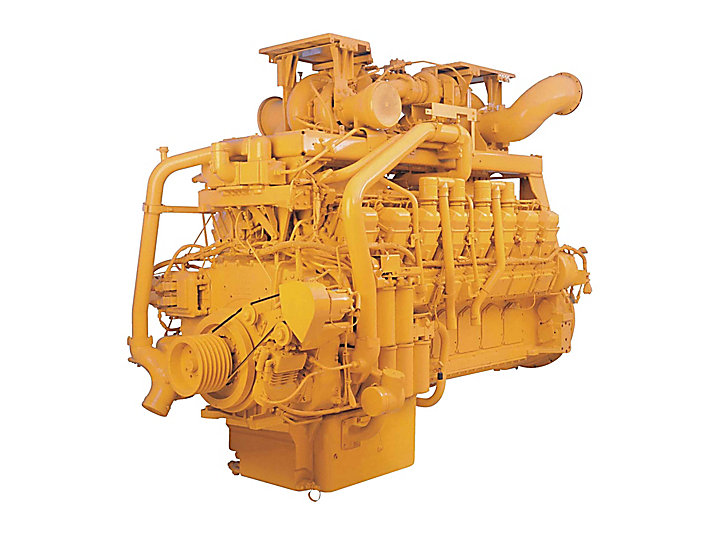

CAT® 3516B INDUSTRIAL DIESEL ENGINE

Maximum Power 2200 HP
Maximum Torque 1800 rpm

Description

For your largest power needs in any environment, Cat® 3516B Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries and applications powered by 3516B engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. These 3516B engines, with ratings: 1492-1640 bkW (2000-2200 bhp) @ 1800 rpm, are non-certified. They are available for global non-regulated areas.

Technical Specification

POWER RATING

Maximum Power 2200 HP
Rated Speed 1800 rpm
Minimum Power 2000 HP

EMISSION STANDARDS

Emissions Non-Certified

GENERAL

Engine Configuration V-16, 4-Stroke-Cycle Diesel
Bore 6.7 in
Stroke 7.5 in
Displacement 4210 in³
Aspiration Turbocharged Aftercooled
Rotation from Flywheel End Counterclockwise
Aftertreatment

ENGINE DIMENSIONS – APPROXIMATE

Length 119 in
Width 57 in
Height 78 in
Weight – Net Dry – Basic Operating Engine Without Optional Attachments 16500 lb

Standard Equipment

AIR INLET SYSTEM

  • Aftercooler core, corrosion resistant coated (air side)
  • Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
  • Turbocharger, rear mounted
  • Jacket water aftercooled

CONTROL SYSTEM

  • Governor, RH, 3161 with self contained synthetic oil sump
  • Air-fuel ratio control
  • Mechanical speed control, without torque control
  • Governor control
  • Positive locking

COOLING SYSTEM

  • Thermostats and housing
  • Jacket water pump, centrifugal

EXHAUST SYSTEM

  • Exhaust manifold, dry

FLYWHEELS AND FLYWHEEL HOUSING

  • SAE No. 00 flywheel
  • 183 flywheel teeth
  • SAE No. 00 flywheel housing

FUEL SYSTEM

  • Fuel filter, with service indicators, cartridge type with RH service
  • Fuel transfer pump

INSTRUMENTATION

  • Instrument Panel, RH
  • Engine oil pressure gauge
  • Fuel pressure gauge
  • Oil filter differential gauge
  • Jacket water temperature gauge
  • Service meter, electric
  • Tachometer

LUBE SYSTEM

  • Crankcase breather, top mounted
  • Oil cooler
  • Oil filler
  • Oil dipstick
  • Oil pump
  • Oil filter, cartridge type with RH service
  • Shallow oil pan

MOUNTING SYSTEM

  • Rails, mounting, engine length, 254 mm (10 in), industrial-type, C-channel.

POWER TAKE OFF

  • Accessory drive, upper RH
  • Front housing, single sided

PROTECTION SYSTEM

  • Junction box
  • Manual shutoff, RH
  • Safety shutoff protection, energized to shutdown
  • Low oil pressure, low idle 69 kPa (10 psi); high idle 207 kPa (30 psi)
  • Water temperature
  • Overspeed
  • 3161 governor solenoid energized to shutdown

STARTING SYSTEM

  • Starting switch

GENERAL

  • Vibration damper
  • Lifting eyes
  • Paint: Caterpillar yellow, with optional colors available at request
